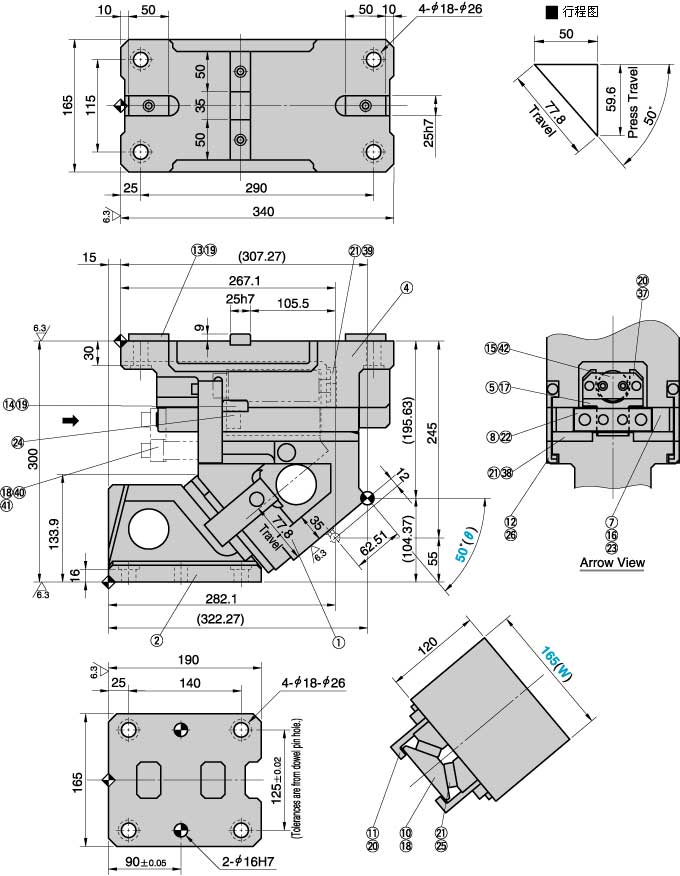

•产品分解表
| No. |
名称 |
数量 |
材质、备注 |
| (1) |
滑动块 |
1 |
HT300 |
| (2) |
底座 |
1 |
HT300 |
| (4) |
驱动块 |
1 |
HT300 |
| (5) |
弹簧滑座 |
1 |
QT500+GR |
| (7) |
板 D |
R/L1 |
45 |
| (8) |
挡板 |
1 |
45 |
| (10) |
凸V型导板 |
1 |
铜合金+GR |
| (11) |
强制拉回块 |
2 |
45 |
| (12) |
限为块 |
2 |
45 |
| (13) |
定位键A |
4 |
45 |
| (14) |
定位键B |
2 |
45 |
| (23) |
定位销 |
4 |
φ12×40 |
| (24) |
缓冲块 |
1 |
聚胺脂 |
| (25) |
板 A |
2 |
45 |
| (37) |
弹簧挡板 |
1 |
45 |
| (38) |
板 B |
2 |
铜合金+GR 50×200×12 |
| (39) |
弹簧垫板 |
1 |
45 |
| (40) |
安装定位块 |
1 |
45 |
行程
S |
加工力kN(tonf) |
弹簧力 N(kgf) |
总重量
(滑动块重量)
kg |
代号 |
(W) |
(θ) |
Spring Type |
| 初压 |
终压 |
| 77.8
|
294.2
(30.0) |
- |
- |
64.3
(25.2) |
LUCMSN |
165 |
50 |
- |
| - |
3518.0
(358.7) |
GD
(DADCO) |
| - |
3430.0
(349.8) |
GK
(KALLER) |
449.1
(45.8) |
2694.0
(274.7) |
ISO
(SIO Coil
Spring) |
 |
Order |
|
|
- |
|
| LUCMSN |
165 |
- |
50 |
|
