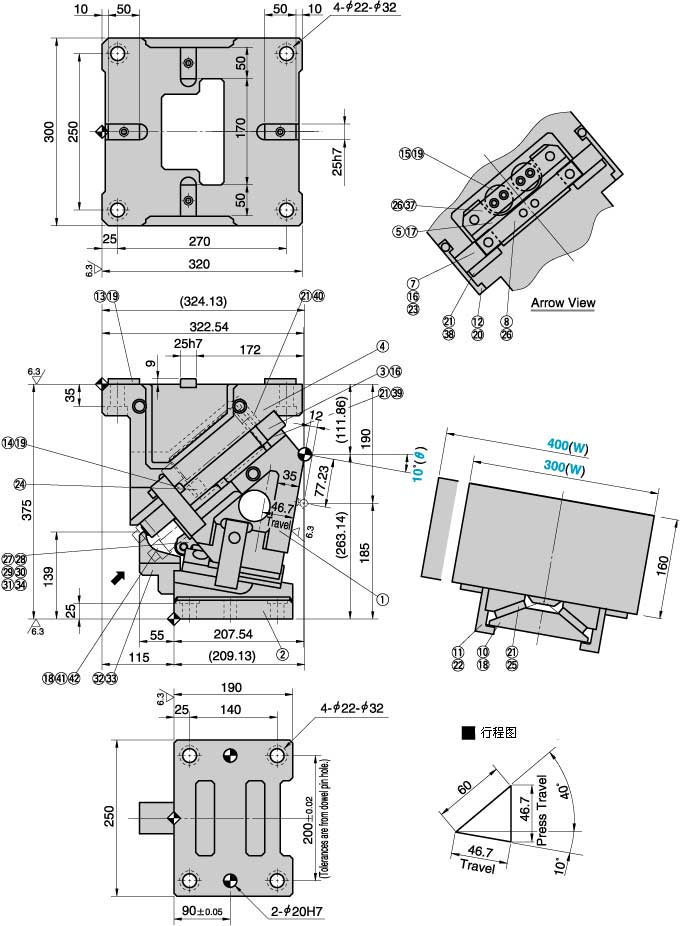

•产品分解表
| No. |
名称 |
名称 |
材质、备注 |
| (1) |
滑动块 |
1 |
HT300 |
| (2) |
底座 |
1 |
HT300 |
| (3) |
上导板 C |
1 |
45 |
| (4) |
驱动块 |
1 |
HT300 |
| (5) |
弹簧滑座 |
1 |
QT500+GR |
| (7) |
板 D |
R/L1 |
45 |
| (8) |
挡板 |
1 |
45 |
| (10) |
凹V型导板 |
1 |
铜合金+GR |
| (11) |
强制拉回块 |
2 |
45 |
| (12) |
限位块 |
2 |
45 |
| (13) |
定位键A |
4 |
45 |
| (14) |
定位键B |
2 |
45 |
| (15) |
弹簧 |
2 |
弹簧类型请参照下表． |
| (23) |
定位销 |
4 |
φ12×40 |
| (24) |
缓冲块 |
3 |
聚胺脂 |
| (25) |
板 A |
2 |
45 |
| (27) |
辊轮 |
1 |
45 |
| (28) |
辊轮闭销 |
1 |
45 |
| (29) |
辊轮轴套 |
1 |
SOB12-18-16 |
| (31) |
辊轮托架 |
1 |
45 |
| (32) |
预压底座 |
1 |
45 |
| (34) |
E型闭销卡簧 |
2 |
45 |
| (37) |
弹簧挡板 |
1 |
45 |
| (38) |
下导板 A |
4 |
铜合金+GR 60×80×12 |
| (39) |
板 B |
1 |
铜合金+GR 30×160×12 |
| (40) |
弹簧垫板 |
1 |
45 |
| (41) |
安装定位块 |
1 |
45 |
行程
S |
加工力kN(tonf) |
弹簧力 N(kgf) |
总重量
(滑动块重量)
kg |
代号 |
(W) |
(θ) |
Spring Type |
| 初压 |
终压 |
| 46.7
|
451.1
(46.0) |
- |
- |
129.3
(54.8) |
LUCMSN |
300 |
10 |
- |
| - |
10668.0
(1087.8) |
|
| - |
10668.0
(1087.8) |
GK
(TOSS) |
1314.1
(134.0) |
9198.0
(937.9) |
ISO
(TM40-175) |
 |
Order |
|
|
- |
|
| LUCMSN |
300 |
- |
10 |
|
